OVERVIEW:

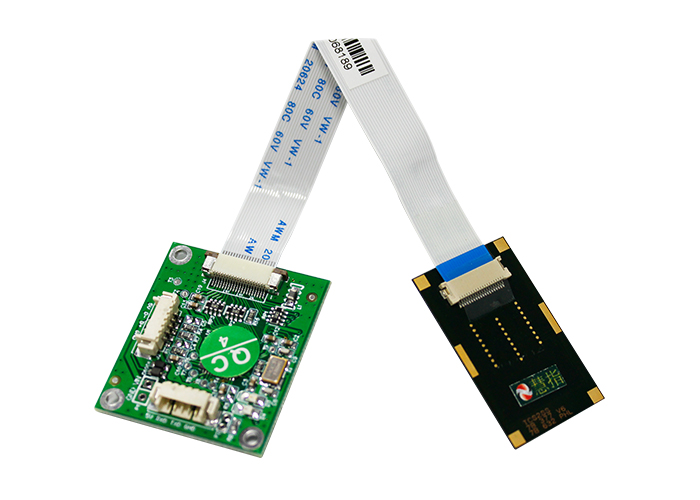

Miaxis SM-205D series fingerprint modules are high-performance standalone fingerprint modules equipped with reliable high-end capacitive sensor and powerful CPU while power efficient. 1:1 verification time in 300 msec and fast power-on time.
• 508 dpi resolution
• High performance fingerprint module -Adopted Upek sensor TCS2 :Industry's highest quality image for dry&wet fingers
• 1:1 verification in 300 msec
• Live finger detection technology
• IP 67 rated dust and water protection(platen window)
• UART&USB multiple interfaces
• LED control
Specification
|
SM-205DJR
|
CPU
|
84MHz, Cortex-M4
|
Flash memory
|
1MB
(Expandable up to 16MB) |
Board Size(L x W x H)
|
35.0× 30.0× 7.5mm
|
Sensor Size
|
33.4 x 20.4 x 2.4mm
|
Sensor type
|
Capacitive
|
Sensor name
|
TCS2
|
Active platen area
|
10.4 x 14.4mm
|
Image Size
|
208 x 288 pixel
|
Image resolution
|
508dpi
|
Grey scale
|
8 bit (256 levels)
|
Power-on time
|
≤200ms
|
Enrollment time
(Finger touch to template) |
≤500ms
|
1:1 Verification time
|
≤300ms
|
1:N Matching time
|
≤1s,N=256
|
FAR
|
≤0.001%
|
FRR
|
≤1%
|
Template size
|
256 bytes default
|
Fingerprint capacity
|
1000 templates(Expandable)
|
Live finger detection
|
Yes
|
ESD immunity
|
±8kV contact discharge
±15kV air discharge |
Supply voltage
|
DC 5V±5%
|
Supply current
|
≤80mA
|
Supply current Sleep mode
|
/
|
Communication interface
|
USB&UART
|
Operating Temperature
|
-10°C to +50°C
|
Storage Temperature
|
-20°C to +60°C
|
Operating humidity
|
20%RH～90%RH
|
The company is Chinese's industry-leading developer and manufacturer of biometric system and fingerprint recognition algorithm. Based on over 18 years of industry experience and we are the key vendor of fingerprint scanner for Chinese resident ID card program approved by the ministry of Public Security.
